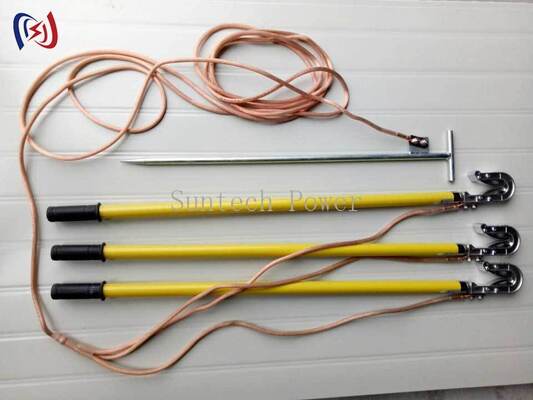

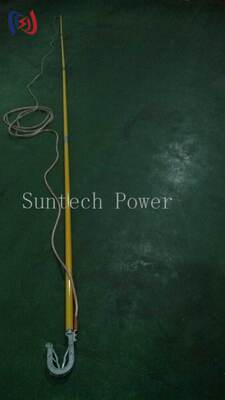

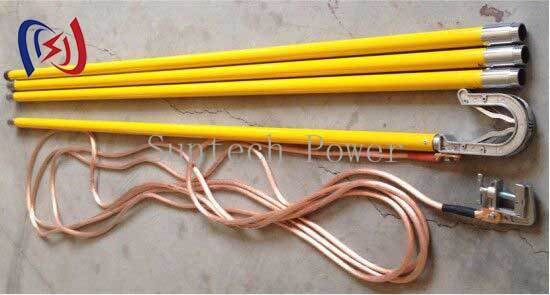

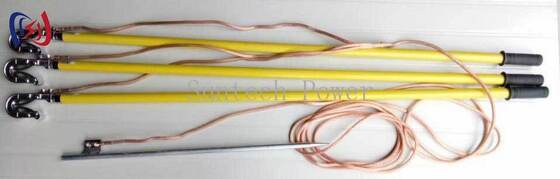

Professional Grounding Lead for 10-500KV Voltage with 25-50mm2 Copper and 1000-5500mm Total Length for Safe Electrical Grounding

1 szt
MOQ
negotiable
Cena £
Professional Grounding Lead for 10-500KV Voltage with 25-50mm2 Copper and 1000-5500mm Total Length for Safe Electrical Grounding
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Nazwa: Ołów uziemienia
woltaż: 10-500KV
Miedź: 25-50 mm2
Izolacyjny: 700-4100 mm
Ręczny: 300-1400 mm
Całkowita długość: 1000-5500 mm
Podstawowe informacje
Miejsce pochodzenia: Ningbo
Nazwa handlowa: Suntech
Orzecznictwo: ISO
Numer modelu: Grunt
Zapłata

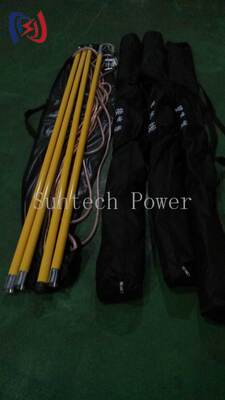

Szczegóły pakowania: Obudowa ze sklejki
Czas dostawy: 3-7 dni
Zasady płatności: L/C, T/T
Możliwość Supply: 3000 sztuk/miesiąc
opis produktu
Professional Grounding Lead for Safe Electrical Grounding and Bonding in Power Systems
A Grounding Lead, also commonly referred to as a grounding jumper or portable ground, is a fundamental and absolutely critical safety device in electrical power systems. It is a specially constructed cable assembly designed to create a deliberate, low-impedance connection between an isolated or de-energized electrical conductor and a verified ground point, such as the system ground grid or a grounded structure.
Technical Specifications
Voltage Class Ground Soft Copper Wire (mm²) Length of Ground Operation Rod (m) Insulating (mm) Handheld (mm) Total Length (mm)
10KV 25 1*3+7~1.5*3+20 700 300 1000
35KV 25 1.5*3+18 900 600 1500
68KV 25 1.5*3+20 1000 600 1600
110KV 25,35 9*3
2*3+20		 1300 700 2000
220KV 25,35 9*3
3*3+25		 2100 900 3000
330KV 35,50 12*3
4*3+25		 3000 1100 4100
500KV 35,50 13*3~20*3 4100 1400 5500
220-500KV Overhead Ground Wire 25 1*3+7~1.5*3+20 700 300 1000
High Pressure Test Equipment 35,50 5*3~10*3 700 300 1000
Key Features and Applications
  • Creates a Safe, Zero-Potential Work Zone: Protects personnel by ensuring de-energized equipment remains at earth potential, preventing accidental energization hazards.
  • Low-Impedance Path for Fault Currents: Engineered with high-purity stranded copper to safely dissipate fault and induced currents without overheating.
  • Essential for Lock Out Tag Out Procedures: Final critical step in safety protocols for de-energized electrical work.
  • Temporary Grounding for Maintenance: Used in substations and overhead lines to create safe work environments during switching and maintenance operations.
  • Equipotential Bonding: Eliminates step and touch potential risks by bonding metallic structures to the same electrical potential.
  • Durable Field Construction: Built with flexible, fine-stranded copper and weather-resistant, high-visibility jackets for harsh environments.
  • Multiple Configurations Available: Various lengths and setups including single leads and three-phase plus neutral kits for specific applications.
  • Personal Protective Grounding Systems: Central component of comprehensive safety systems rated for specific fault currents.
  • Rigorous Testing Requirements: Subject to regular visual inspections and high-current testing to ensure operational integrity.
  • Safety Compliance Investment: Meets OSHA, NFPA 70E, and other regulatory requirements for electrical safety programs.
The Grounding Lead is much more than just a cable; it is a purpose-built safety lifeline. It is the engineered solution that actively creates a safe working environment in the inherently dangerous field of electrical power. By providing a controlled, low-resistance path to ground, it ensures that unexpected electrical energy is safely diverted, protecting the lives of the skilled professionals who build, maintain, and repair the electrical infrastructure that powers our world.
